14L

Technische Daten

• Product description

  projector 14L
  for wall-, ground and ceiling mounting
  power supply and mounting bracket must be ordered separately

  Article number

  14L2250KWDE916

  Colour

  silver

• Lighting technology - LDT

  with LED 33250 lm
  colour temperature: 5700 K
  colour rendering index (manually): CRI >70
  L80 / B10 (50.000h)
  SDCM < 3
  net luminous flux: 24320 lm
  total load: 250 W
  luminous efficacy: 97.3 lm/W , medium beam angle: 25 °


  Control gear / connection

  for external power supply, integrated control unit (DALI)
  48V DC
  control ON/OFF, DALI


• Housing / Material


  housing of die cast aluminium
  safety glass, clear

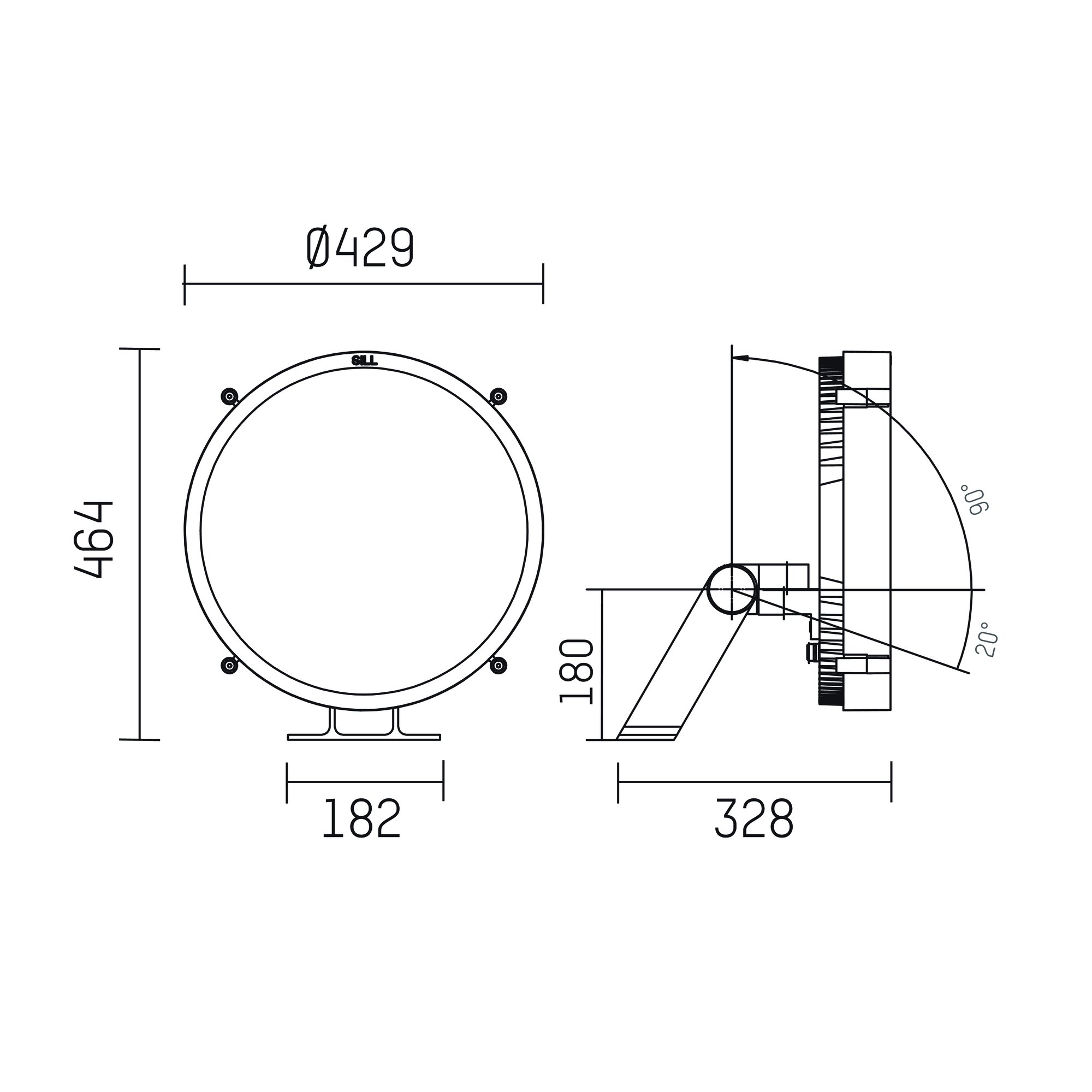

  Dimensions and weights

  Weight: 9.823 kg Rotation range: Swivel range:

  Protection classes / test marks

  protection rating: IP65
  protection class II
  5 years Hoffmeister warranty
  designed and manufactured in Germany Maximum ambient temperature: Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE
