151

Technische Daten

• Product description

  city projector 151 with adjustable mounting arm
  for mounting to column top or wall bracket
  mounting devices must be ordered seperately

  Article number

  1519020NW01-1D

  Colour

  silver

• Lighting technology - LDT

  with LED 2840 lm
  colour temperature: 4000 K
  colour rendering index (manually): CRI >80
  L90 / B10 (100.000 / ta 25°C)
  SDCM < 3
  net luminous flux: 2260 lm
  total load: 20 W
  luminous efficacy: 113.0 lm/W bidirectional light distribution


  Control gear / connection

  with built in LED power unit, electronic (DALI), 220-240 V, 0/50/60 Hz
  including thermal protection for driver and LED module
  optional DC voltage suitable (AC/DC) - 15% power for operation in emergency lighting systems
  further dimming functions on request
  amplitude dimming

  dimming range: 100-10 %
  Number of luminaires per fuse (): 48

• Housing / Material


  housing of die cast aluminium
  safety glass, clear
  glass can be hinged opened by releasing two captive screws
  with additional safety cable

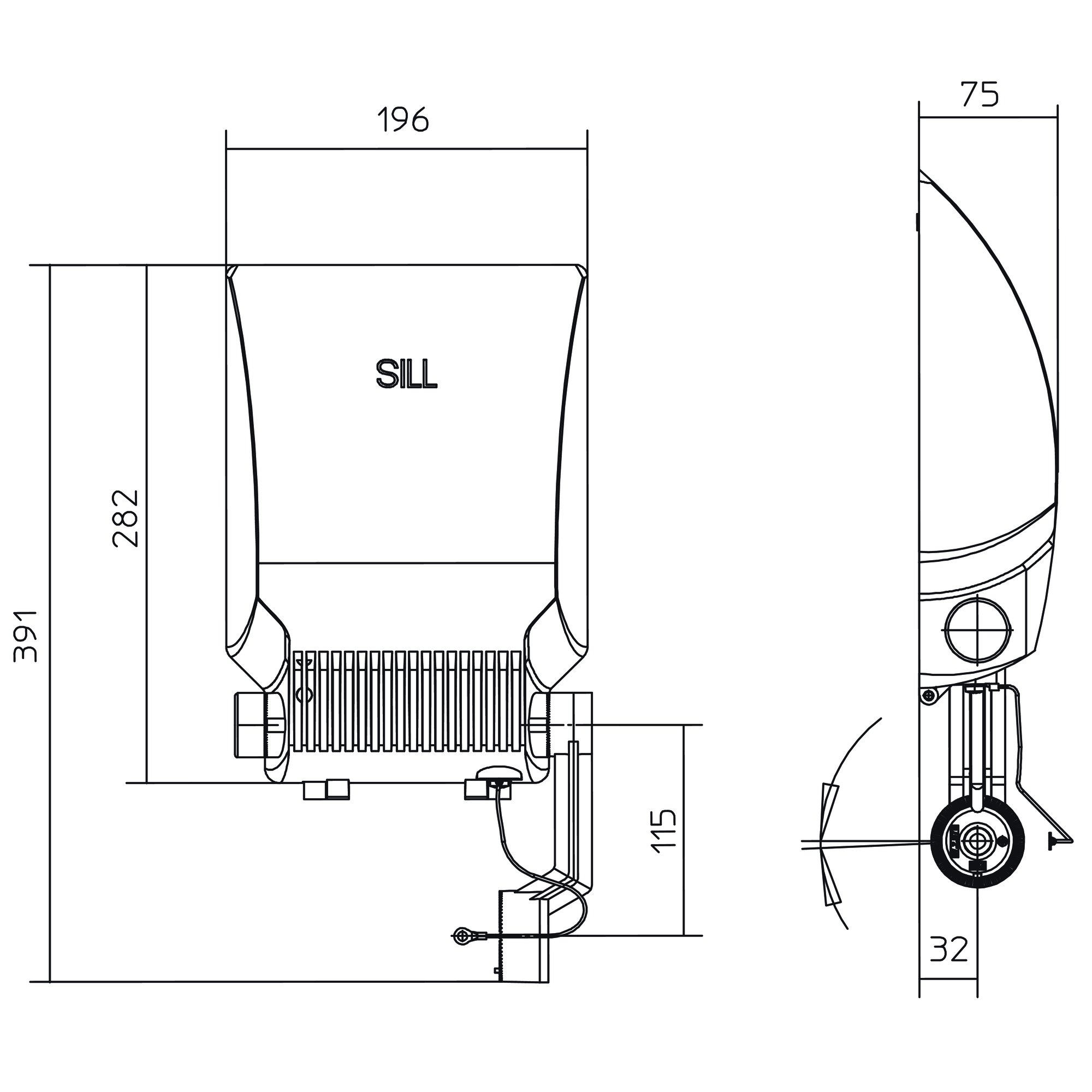

  Dimensions and weights

  Weight: 3.3 kg Rotation range: Swivel range: pivot range +120°/-45°

  Protection classes / test marks

  protection rating: IP65
  protection class II
  5 years Hoffmeister warranty
  designed and manufactured in Germany Maximum ambient temperature: 45 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598
