complx

10812303910R

directional spotlight complx.150 rim
LED 2400 lm, 3000 K, 28 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    directional spotlight complx.150 rim with a rim projecting over the ceiling
    for installation into suspended ceilings
    Article number
    10812303910R
    Colour
    white
  • Lighting technology - LDT
    with LED 2400 lm
    colour temperature: 3000 K
    colour rendering index (manually): CRI >90
    L90 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 1780 lm
    total load: 28 W
    luminous efficacy: 63.6 lm/W     rotationsymmetrical light distribution, flood beam angle: 45 °
    Control gear / connection
    with external LED power unit, electronic, 220-240 V, 0/50/60 Hz
  • Housing / Material

    housing of die cast aluminium
    microprismatic filter with very high rate of light transmission
    recessing ring of die cast aluminium
    Dimensions and weights

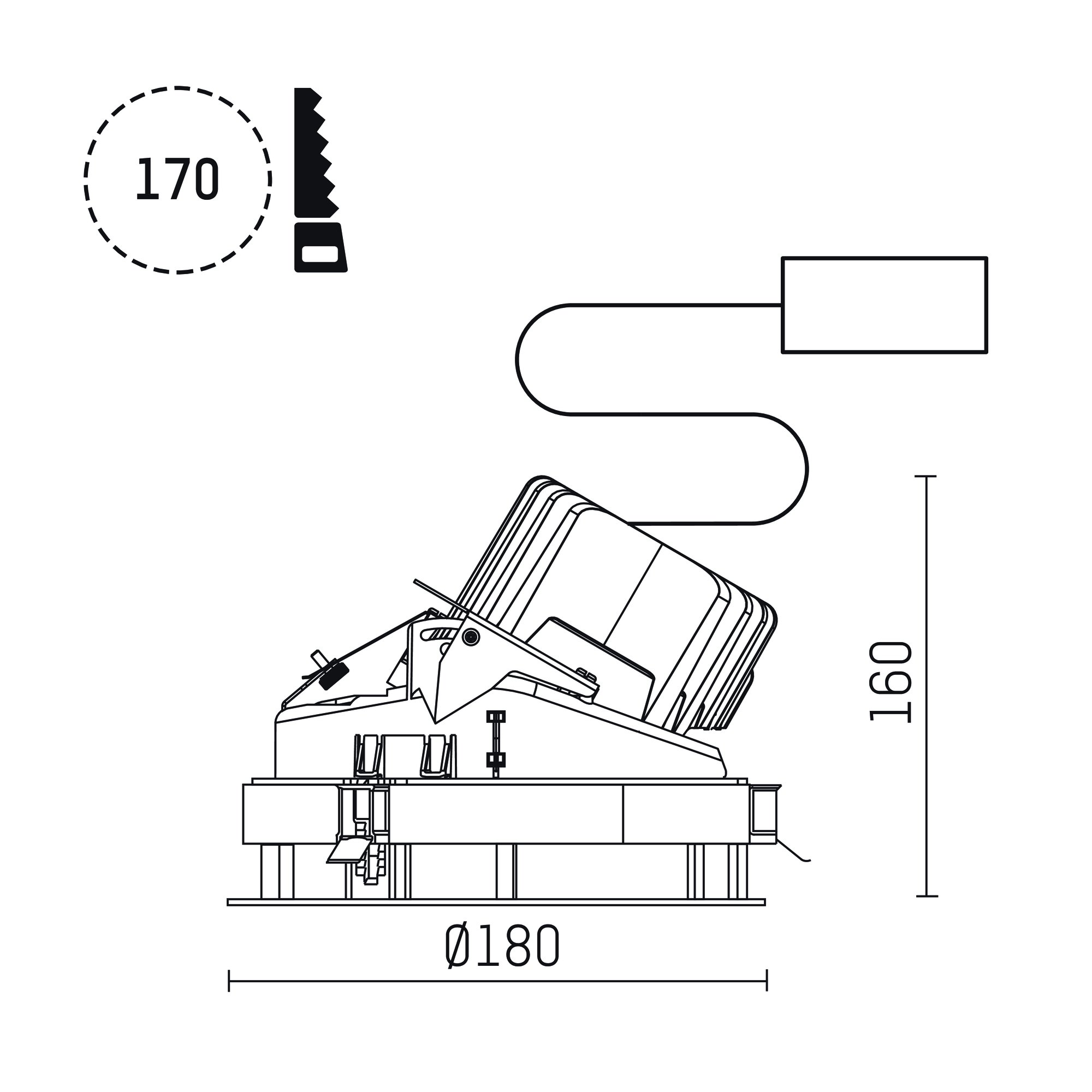

    Weight: 1.28 kg height: 147 mm Rotation range: rotatable 360°, fixable setting Swivel range: 0°-30° tiltable, fixable setting
    Protection classes / test marks
    protection rating: IP20
    protection class I
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE

Technik

Optional accessoires

housing for concrete cast
for recessed downlights complx.150 rim

10800510000
