hi.vertical 2.0

07162403902D

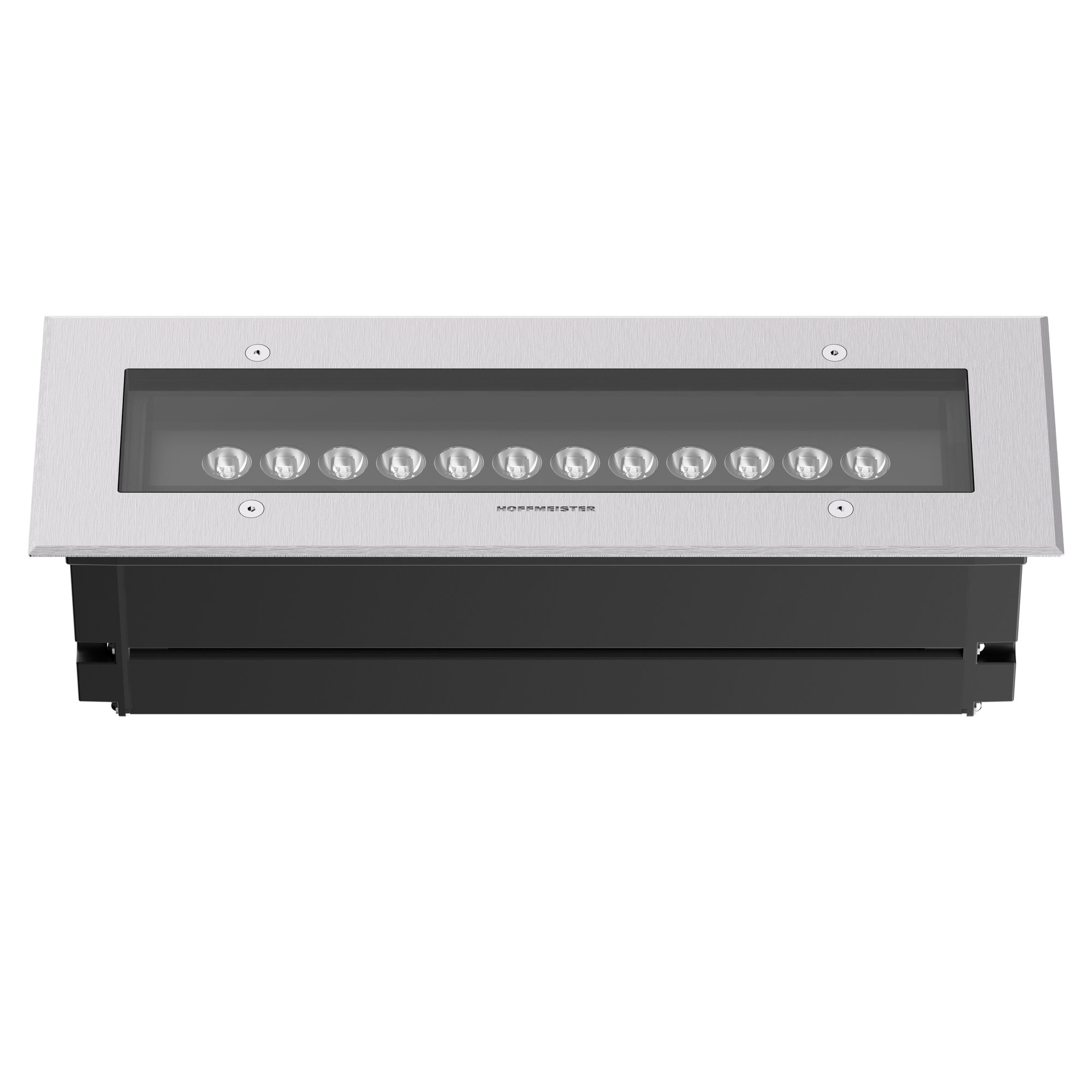

inground luminaire hi.vertical 2.0
LED 1350 lm, 3000 K, 14 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    inground luminaire hi.vertical 2.0
    for mounting into separate in-ground housing
    Article number
    07162403902D
    Colour
    stainless steel
  • Lighting technology - LDT
    with LED 1350 lm
    colour temperature: 3000 K
    colour rendering index (manually): CRI >90
    L80 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 1060 lm
    total load: 14 W
    luminous efficacy: 75.7 lm/W     symmetrical light distribution, medium beam angle: 25 °
    Control gear / connection
    with built in LED power unit, electronic (DALI), 220-240 V, 0/50/60 Hz
    dimmable

    dimming range: 100-0.5 %
  • Housing / Material

    housing of aluminium and die cast aluminium
    with stainless steel cover frame

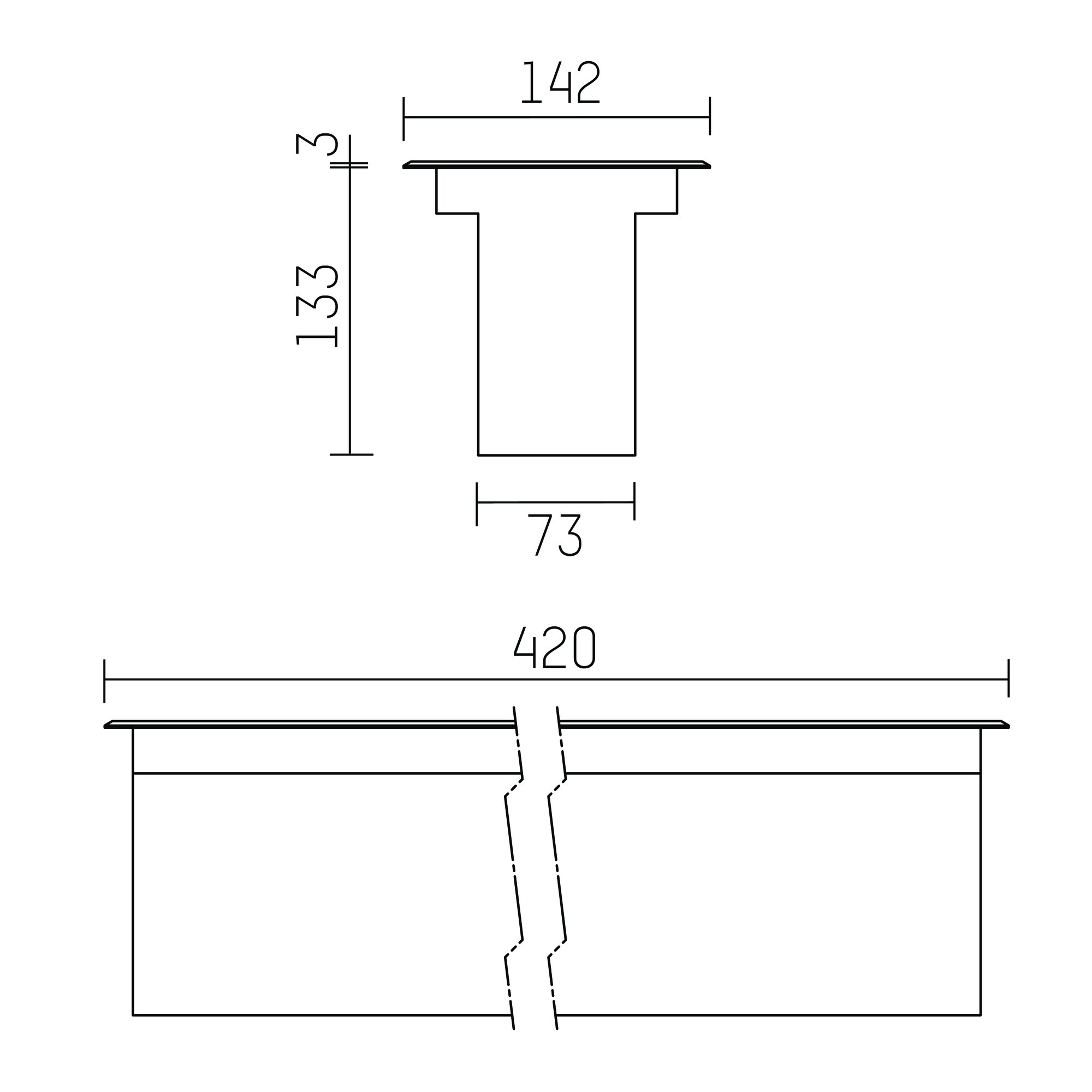

    Dimensions and weights
    Weight: 6.2 kg length: 420 mm width: 142 mm Rotation range: Swivel range: adjustable optics ± 15°, adjustable from outside in operation
    Protection classes / test marks
    protection rating: IP68 1m / 0,5h
    protection class I
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: 50 ° C Mark of conformity: CE|manufactured according to DIN VDE 0711 / EN 60598

Technik

Optional accessoires

moulded sleeve
for connecting to an underground cable

07121300000

in-ground housing
for ground recessed luminaire hi.vertical 2.0 - up to 3t load capacity

07169600000

housing for concrete cast, made of stainless steel, up tp 3t load capacity
for ground recessed luminaire hi.vertical 2.0

07169100000
