control.x

11011500721D

Recessed track control.x 5000 mm
, ,

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    Recessed track control.x 5000 mm mixed operation of different adapters is no problem
    Can also be used to operate emergency lighting luminaires
    control.x and 3-circuit accessories can be used
    tracks made of a stable, extruded aluminium profile
    3 x 16A for particularly long track systems
    approved to be used within easy reach
    the track can be cut without reworking the copper conductors
    for installation into suspended ceilings
    Article number
    11011500721D
    Colour
    black
  • Lighting technology - LDT
    Control gear / connection
  • Housing / Material
    material: aluminium
    Dimensions and weights

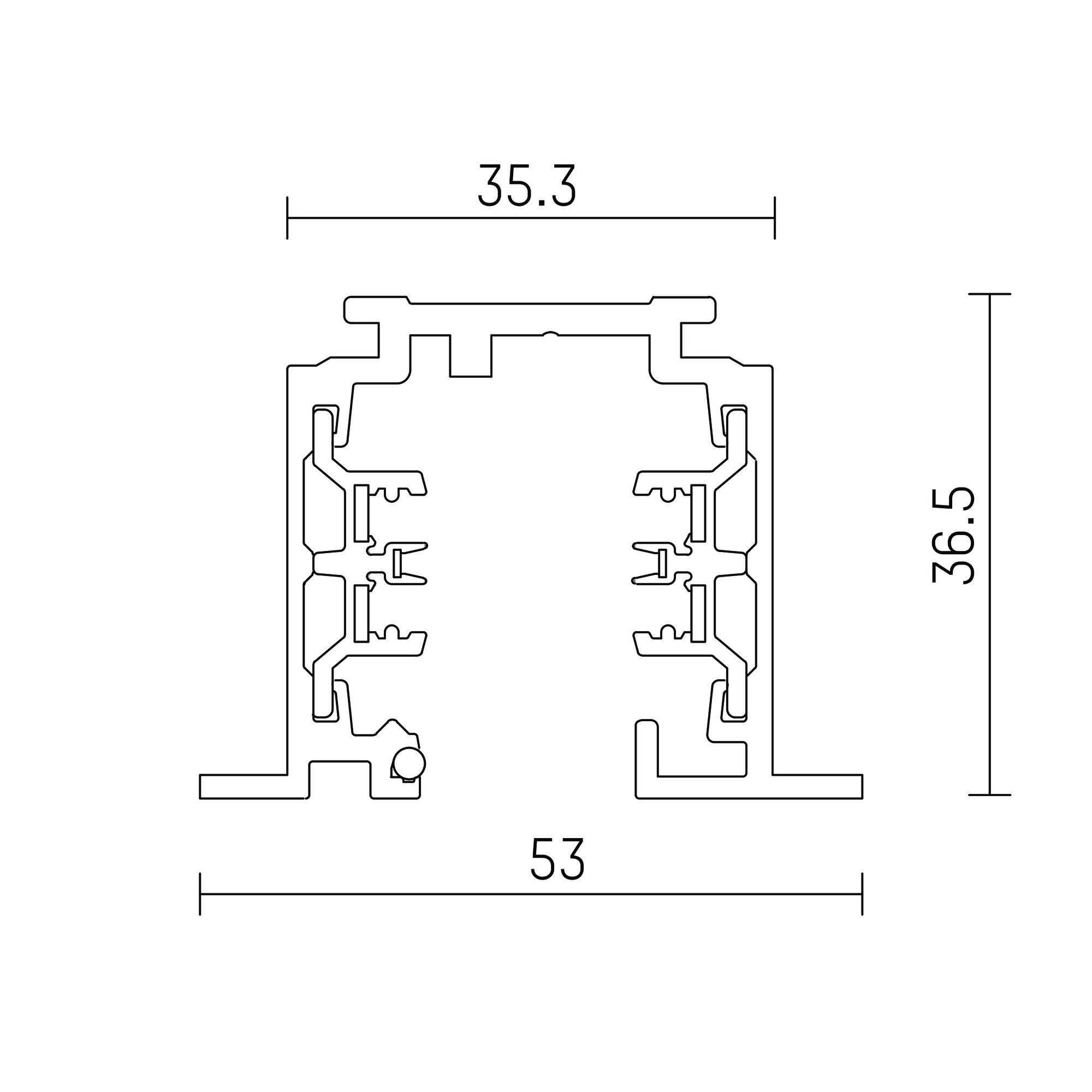

    Weight: 6.8 kg length: 5000 mm width: 53 mm height: 36.5 mm Rotation range: Swivel range:
    Protection classes / test marks
    protection rating: IP20
    protection class I
    Made in Germany     Maximum ambient temperature: Mark of conformity: CE

Technik

Optional accessoires

control.x adapter, DALI
for control.x tracks

11003000721D

safety outlet-socket, 1-fach
with 3-circuit universal adaptor
for control.x tracks

11002900721

control.x adapter, DALI
for control.x tracks

11003100721D

clamp, for suspension from raw ceiling
for combination with suspension systems provided by costumers
for control.x tracks

09371100721

control.x adapter, L/N (3-circuit) test-adapter
For controlling the installed control.x track-system

11003200721

cover, for T-connectors with an optional feed-in
to cover connectors and supply connectors in the case of flanged tracks

11002400721

cover, for X connectors with an optional feed-in
to cover connectors and supply connectors in the case of flanged tracks

11002500721

cover, for 90° connectors without an optional feed-in
to cover connectors and supply connectors in the case of flanged tracks

11002200721

cover, for end-supply connector
to cover connectors and supply connectors in the case of flanged tracks

11002000721

intermediate cover, for coupler
to cover couplers in the case of flanged tracks

11002600721

cover, for intermediate supply connector
to cover connectors and supply connectors in the case of flanged tracks

11002100721

X coupler, 3-circuit
with optional power input

11000900721

X coupler, control.x
with optional power input

11000900721D

T coupler, 3-circuit
earth conductor position: right
with optional power input

11000700721

T coupler, control.x
earth conductor position: left
with optional power input

11000800721D

T coupler, control.x
earth conductor position: right
with optional power input

11000700721D

intermediate supply connector, 3-circuit

11001100721

intermediate supply connector, control.x

11001100721D

T coupler, 3-circuit
earth conductor position: left
with optional power input

11000800721

end supply connector, 3-circuit
earth conductor position: right

11000100721

end supply connector, control.x
earth conductor position: left

11000200721D

end supply connector, control.x
earth conductor position: right

11000100721D

end cap

11000000721

coupler, 3-circuit

11001000721

coupler, control.x

11001000721D

90° coupler, 3-circuit
earth conductor position: outside

11000300721

90° coupler, 3-circuit
earth conductor position: inside

11000400721

90° coupler, control.x
earth conductor position: outside

11000300721D

90° coupler, control.x
earth conductor position: inside

11000400721D

end supply connector, 3-circuit
earth conductor position: left

11000200721

90° coupler, 3-circuit
earth conductor position: outside
with optional power input

11000500721

90° coupler, 3-circuit
earth conductor position: inside
with optional power input

11000600721

90° coupler, control.x
earth conductor position: outside
with optional power input

11000500721D

90° coupler, control.x
earth conductor position: inside
with optional power input

11000600721D
