led.modular

Technische Daten

• Product description

  linear luminaire led.modular IP65 with mounting bracket
  for installation on wall or ceiling
  for optimal illumination of vertical facades

  Article number

  11703403916

  Colour

  silver

• Lighting technology - LDT

  with LED 2400 lm
  colour temperature: 3000 K
  colour rendering index (manually): CRI >90
  L80 / B10 (50.000h)
  SDCM < 2
  net luminous flux: 2120 lm
  total load: 28 W
  luminous efficacy: 75.7 lm/W symmetrical light distribution, medium beam angle: 25 °


  Control gear / connection

  for external control gear
  temperature-controlled LED circuit board (NTC) optional reduction of system power (14W / 1350lm) is possible


• Housing / Material


  housing of extruded aluminium profile
  safety glass, clear
  bracket of stainless steel

  Dimensions and weights

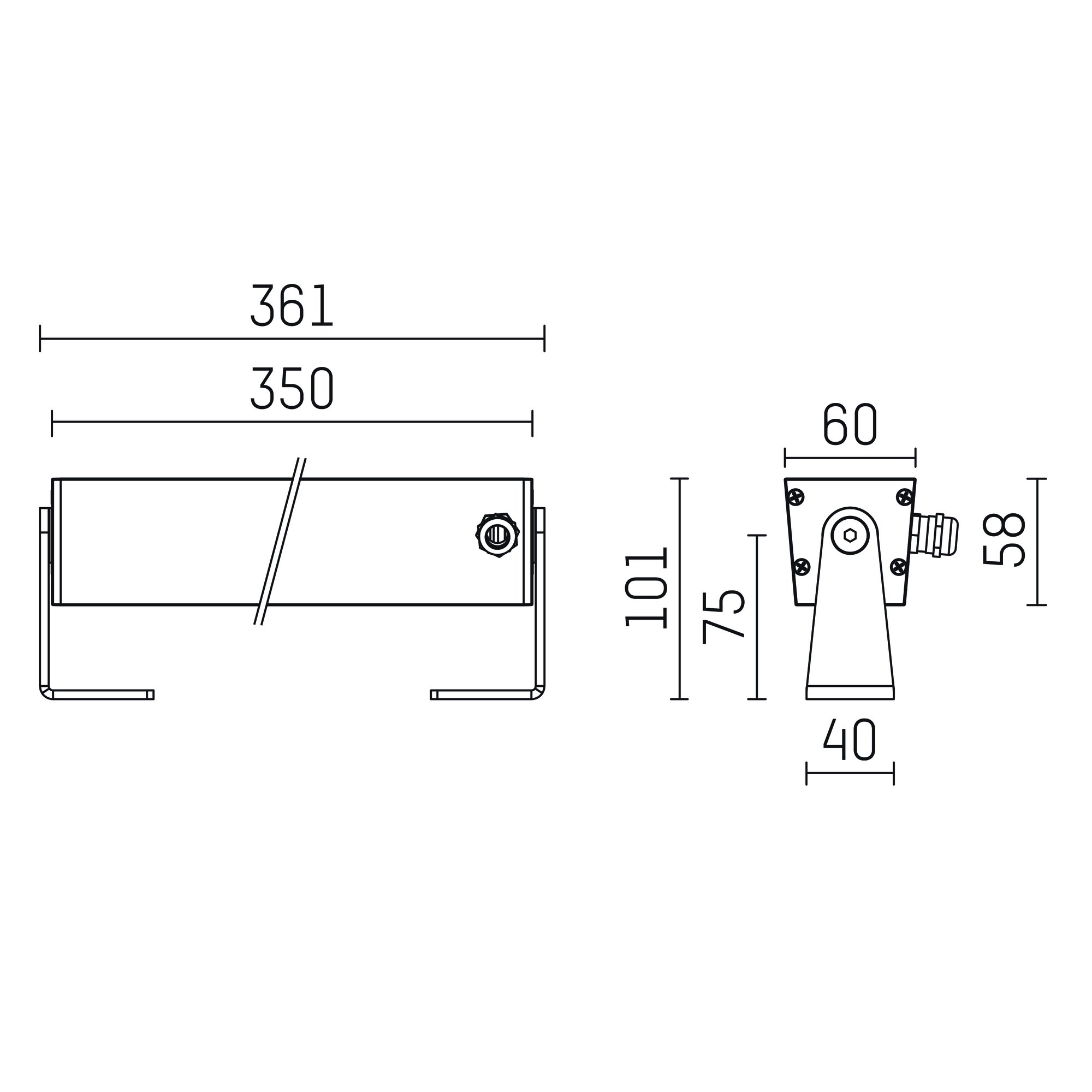

  Weight: 1.75 kg length: 361 mm width: 60 mm height: 100 mm Rotation range: Swivel range:

  Protection classes / test marks

  protection rating: IP65
  protection class I
  5 years Hoffmeister warranty
  Made in Germany Maximum ambient temperature: 50 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE
