ak.tina

12096204721R

recessed spotlight ak.tina 1
LED 260 lm, 4000 K, 2 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    recessed spotlight ak.tina 1 with a rim projecting over the ceiling
    for installation in showcase furniture
    Article number
    12096204721R
    Colour
    black anodised
  • Lighting technology - LDT
    with LED 260 lm
    colour temperature: 4000 K
    colour rendering index (manually): CRI >80
    L90 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 210 lm
    total load: 2 W
    luminous efficacy: 105.0 lm/W     rotationsymmetrical light distribution, spot beam angle: 14 °
    Control gear / connection
    for external control gear
  • Housing / Material

    housing of aluminium
    recessing ring of thermoplastic

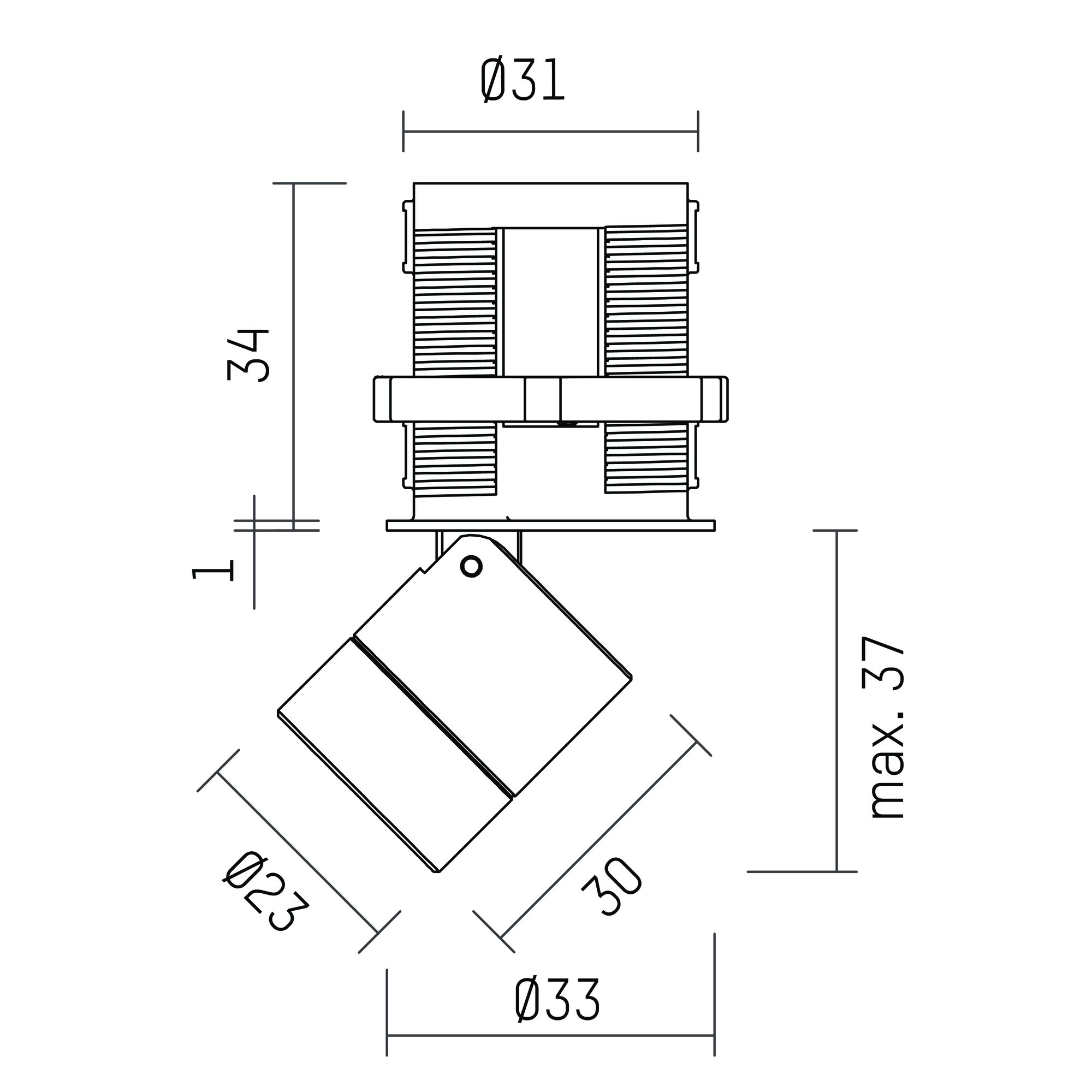

    Dimensions and weights
    Weight: 0.103 kg height: 35 mm Rotation range: rotatable 360° Swivel range: 90° tiltable
    Protection classes / test marks
    protection rating: IP20
    protection class III
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: 35 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE

Technik

Required accessoires

connecting cable, with system plug connector
2000mm
for ak.tina

12098300721

connection ring, with honeycomb louver
for ak.tina

12099300721

connection ring, with wide-flood lense
for ak.tina

12099700721

distributor coupler, 3-fold, with system plug connector
for ak.tina

12098400721

distributor coupler, 6-fold, with system plug connector
for ak.tina

12098500721

connecting cable, with system plug connector
1500mm
for ak.tina

12098200721

connecting cable, with system plug connector
1000mm
for ak.tina

12098100721

connection ring, with prismatic glass
for ak.tina

12099600721

connection ring, with soft.shape lense
for ak.tina

12099400721

connection ring, with sculpture lens
for ak.tina

12099500721

antiglare flaps
for ak.tina

12099200721

tube screen
for ak.tina

12099000721

visor
for ak.tina

12099100721

flood lense, 10 pieces
for spotlights ak.tina

12097400000

medium lense, 10 pieces
for spotlights ak.tina

12097300000

oval flood lense, 10 pieces
for spotlights ak.tina

12097600000

LED power unit, 1-10V
constant current driver hotplug 700mA, 20W, for max. 6 ak.tina

12098610000A

LED power unit, DALI mit Amplitudendimmung
constant current driver hotplug 700mA, 20W, for max. 6 ak.tina

12098610000D

LED power unit
constant current driver hotplug 700mA, 20W, for max. 6 ak.tina

12098610000
