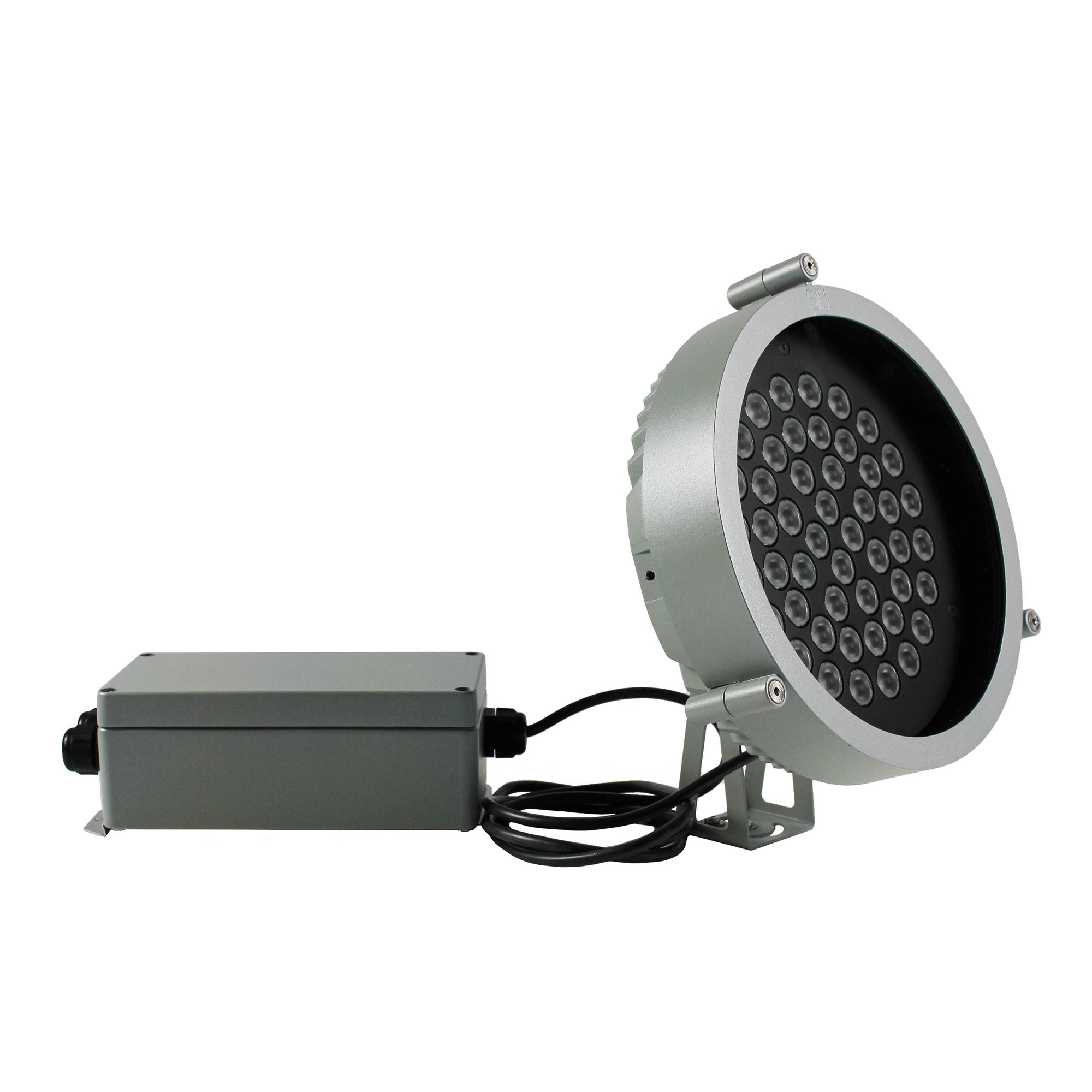

- The innovative spotlight series 14 offers a wide range of system components, therefore the luminaires can be flexibly and versatilely adapted to different applications and lighting concepts. The 3 luminaire housings (S/M/L) are designed with an integrated control for ON/OFF, DALI and DMX as well as constant current control for 24V or 48V. This offers the possibility of using an existing installation with a central power supply unit, e.g. in shipping, commercial vehicles and industrial installations. In addition, various power supply units are available for decentralised supply.
| Product image |
Article number
|
Output
|
Light distribution
|
Colour temp.
|
Luminous flux
|
Interface
|
Protection class
|
Illuminant
|
|---|---|---|---|---|---|---|---|---|
|
|
14MS104CNCE916 | 100 W | 8 ° | integrated control unit (DMX) | IP65 | LED-RGBW | ||
|
|
14M3104CNCE916 | 100 W | 32 ° | integrated control unit (DMX) | IP65 | LED-RGBW | ||
|
|
14MS104CNDE916 | 100 W | 8 ° | integrated control unit (DALI) | IP65 | LED-RGBW | ||
|
|
14M2104CNCE916 | 100 W | 22 ° | integrated control unit (DMX) | IP65 | LED-RGBW | ||
|
|
14M3104CNDE916 | 100 W | 32 ° | integrated control unit (DALI) | IP65 | LED-RGBW | ||
|
|
14M1104CNDE916 | 100 W | 13 ° | integrated control unit (DALI) | IP65 | LED-RGBW | ||
|
|
14M1104CNCE916 | 100 W | 13 ° | integrated control unit (DMX) | IP65 | LED-RGBW | ||
|
|
14M2104CNDE916 | 100 W | 22 ° | integrated control unit (DALI) | IP65 | LED-RGBW | ||
|
|
14MS104WWCE916 | 100 W | 7 ° | 3000 K | 9950 lm | integrated control unit (DMX) | IP65 | |
|
|
14MS104WWDE916 | 100 W | 7 ° | 3000 K | 9950 lm | integrated control unit (DALI) | IP65 | |
|
|
14MS104KWCE916 | 100 W | 7 ° | 5700 K | 9950 lm | integrated control unit (DMX) | IP65 | |
|
|
14MS104KWDE916 | 100 W | 7 ° | 5700 K | 9950 lm | integrated control unit (DALI) | IP65 | |
|
|
14MS104NWCE916 | 100 W | 7 ° | 4000 K | 9650 lm | integrated control unit (DMX) | IP65 | |
|
|
14MS104NWDE916 | 100 W | 7 ° | 4000 K | 9650 lm | integrated control unit (DALI) | IP65 | |
|
|
14M3104KWCE916 | 100 W | 40 ° | 5700 K | 10450 lm | integrated control unit (DMX) | IP65 | |
|
|
14M3104WWCE916 | 100 W | 40 ° | 3000 K | 10450 lm | integrated control unit (DMX) | IP65 | |
|
|
14M3104NWCE916 | 100 W | 40 ° | 4000 K | 10100 lm | integrated control unit (DMX) | IP65 | |
|
|
14M3104KWDE916 | 100 W | 40 ° | 5700 K | 14050 lm | integrated control unit (DALI) | IP65 | |
|
|
14M3104NWDE916 | 100 W | 40 ° | 4000 K | 14120 lm | integrated control unit (DALI) | IP65 | |
|
|
14M3104WWDE916 | 100 W | 40 ° | 3000 K | 10450 lm | integrated control unit (DALI) | IP65 | |
|
|
14M3104AMCE916 | 100 W | 32 ° | 9300 lm | integrated control unit (DMX) | IP65 | ||
|
|
14M3104AMDE916 | 100 W | 32 ° | 9300 lm | integrated control unit (DALI) | IP65 | ||
|
|
14M2104KWCE916 | 100 W | 25 ° | 5700 K | 10450 lm | integrated control unit (DMX) | IP65 | |
|
|
14M2104NWCE916 | 100 W | 25 ° | 4000 K | 14120 lm | integrated control unit (DMX) | IP65 | |
|
|
14M2104WWCE916 | 100 W | 25 ° | 3000 K | 12730 lm | integrated control unit (DMX) | IP65 | |
|
|
14M2104KWDE916 | 100 W | 25 ° | 5700 K | 14050 lm | integrated control unit (DALI) | IP65 | |
|
|
14M2104NWDE916 | 100 W | 25 ° | 4000 K | 14120 lm | integrated control unit (DALI) | IP65 | |
|
|
14M2104AMCE916 | 100 W | 22 ° | 9300 lm | integrated control unit (DMX) | IP65 | ||
|
|
14M2104WWDE916 | 100 W | 25 ° | 3000 K | 12730 lm | integrated control unit (DALI) | IP65 | |
|
|
14M1104KWCE916 | 100 W | 15 ° | 5700 K | 14050 lm | integrated control unit (DMX) | IP65 | |
|
|
14M2104AMDE916 | 100 W | 22 ° | 9300 lm | integrated control unit (DALI) | IP65 | ||
|
|
14M1104WWCE916 | 100 W | 15 ° | 3000 K | 12730 lm | integrated control unit (DMX) | IP65 | |
|
|
14M1104NWCE916 | 100 W | 15 ° | 4000 K | 14120 lm | integrated control unit (DMX) | IP65 | |
|
|
14M1104KWDE916 | 100 W | 15 ° | 5700 K | 14050 lm | integrated control unit (DALI) | IP65 | |
|
|
14M1104NWDE916 | 100 W | 15 ° | 4000 K | 14120 lm | integrated control unit (DALI) | IP65 | |
|
|
14M1104AMCE916 | 100 W | 13 ° | 9300 lm | integrated control unit (DMX) | IP65 | ||
|
|
14M1104WWDE916 | 100 W | 15 ° | 3000 K | 12730 lm | integrated control unit (DALI) | IP65 | |
|
|
14M1104AMDE916 | 100 W | 13 ° | 9300 lm | integrated control unit (DALI) | IP65 | ||
|
|
14M5104KWCE916 | 100 W | 15° x 57° | 5700 K | 14050 lm | integrated control unit (DMX) | IP65 | |
|
|
14M5104NWCE916 | 100 W | 15° x 57° | 4000 K | 10600 lm | integrated control unit (DMX) | IP65 | |
|
|
14M5104WWCE916 | 100 W | 15° x 57° | 3000 K | 12370 lm | integrated control unit (DMX) | IP65 | |
|
|
14M5104KWDE916 | 100 W | 15° x 57° | 5700 K | 14050 lm | integrated control unit (DALI) | IP65 | |
|
|
14M5104NWDE916 | 100 W | 15° x 57° | 4000 K | 14120 lm | integrated control unit (DALI) | IP65 | |
|
|
14M5104WWDE916 | 100 W | 15° x 57° | 3000 K | 12730 lm | integrated control unit (DALI) | IP65 | |
|
|
14M5104AMCE916 | 100 W | oval flood | 9300 lm | integrated control unit (DMX) | IP65 | ||
|
|
14M5104AMDE916 | 100 W | oval flood | 9300 lm | integrated control unit (DALI) | IP65 |
