LED Upgrade Kit 455
22880 lm, 3000 K, 160 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description

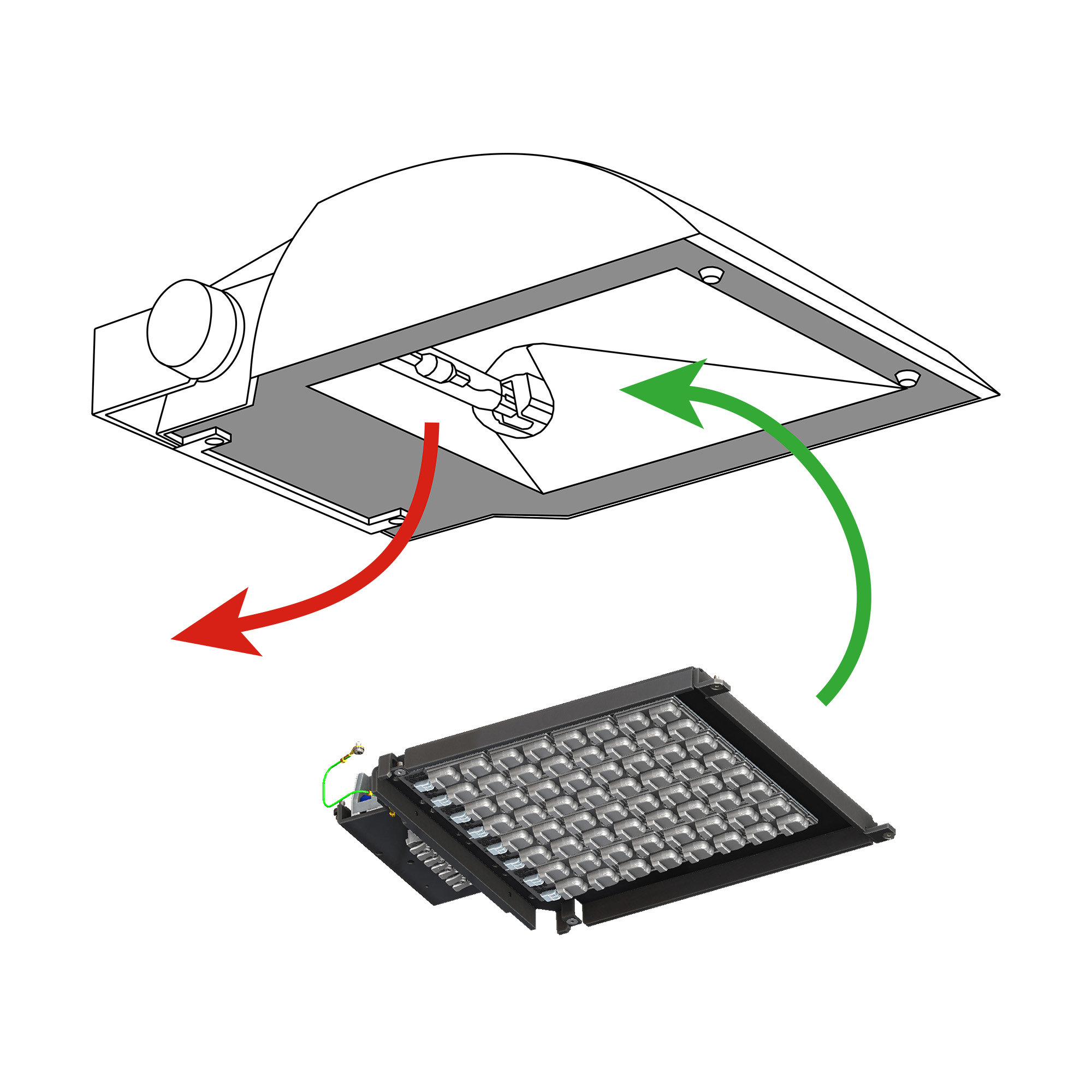

    LED Upgrade Kit 455
    Article number
    81556160WW-US
    Colour
  • Lighting technology - LDT
    with LED 22880 lm
    colour temperature: 3000 K
    colour rendering index (manually): CRI >80
    SDCM < 3
    net luminous flux: 19000 lm
    total load: 160 W
    luminous efficacy: 118.8 lm/W     asymmetrical light distribution, wide beam
    Control gear / connection
    with built in LED power unit, electronic (DALI), 220-240 V, 0/50/60 Hz
    overvoltage protection 10KV
    optional DC voltage suitable (AC/DC) - 15% power for operation in emergency lighting systems
    further dimming functions on request
  • Housing / Material
    Dimensions and weights
    Weight: 3.7 kg Rotation range: Swivel range:
    Protection classes / test marks

    protection class I
    5 years Hoffmeister warranty
    designed and manufactured in Germany     Maximum ambient temperature: 42 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE

Technik

Required accessoires

Replacement glass with hinge, seal included
for upgrade kit 455

8155000100
