DL 70

03506102908

downlight DL 70 LED
LED-COB 920 lm, 2700 K, 10 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    downlight DL 70 LED with a rim projecting over the ceiling
    Article number
    03506102908
    Colour
    chrome
  • Lighting technology - LDT
    with LED COB 920 lm
    colour temperature: 2700 K
    colour rendering index (manually): CRI >90
    L80 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 610 lm
    total load: 10 W
    luminous efficacy: 61.0 lm/W     rotationsymmetrical light distribution, medium cut of angle: 30 °
    beam angle: 17 °
    UGR: 13
    Control gear / connection
    with external LED power unit, electronic, 220-240 V, 50/60 Hz
    Dimming with external dimmers possible (trailing-edge and leading-edge)
  • Housing / Material

    housing of aluminium and die cast aluminium

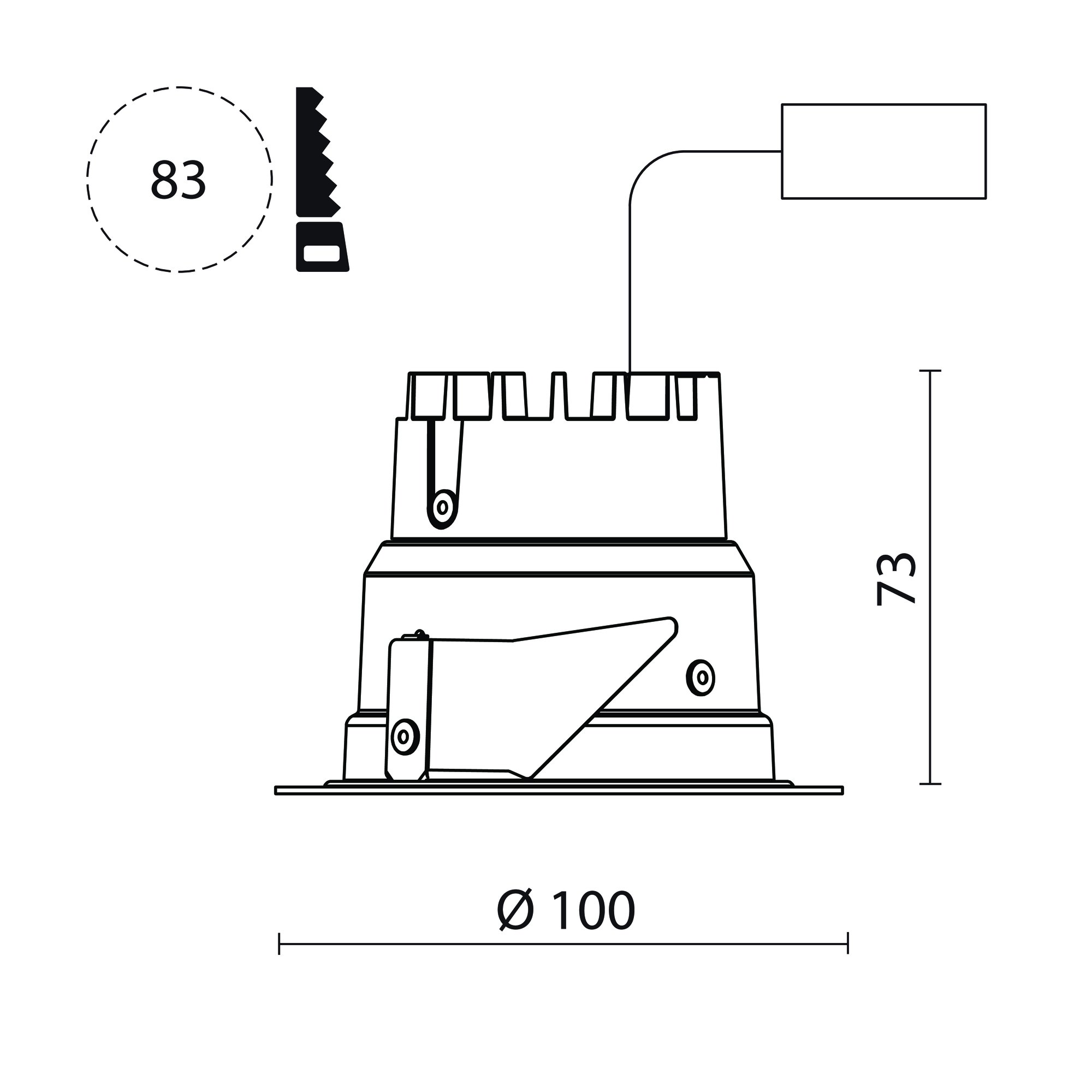

    Dimensions and weights
    Weight: 0.22 kg height: 73 mm Rotation range: Swivel range:
    Protection classes / test marks
    protection rating: IP20 IP44 in closed ceiling systems
    protection class I
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE
