lo.nely

11652313906-PA

spotlight lo.nely 2
LED 1200 lm, 3000 K, 14 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    spotlight lo.nely 2 passive thermo management with recessed mounting plate
    for recessed installation into wall or ceiling
    Article number
    11652313906-PA
    Colour
    silver
  • Lighting technology - LDT
    with LED 1200 lm
    colour temperature: 3000 K
    colour rendering index (manually): CRI >90
    L90 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 1210 lm
    total load: 14 W
    luminous efficacy: 86.4 lm/W     rotationsymmetrical light distribution, medium beam angle: 25 °
    Control gear / connection
    with external LED power unit, electronic, 220-240 V, 50/60 Hz
    Dimming with external dimmers possible (trailing-edge and leading-edge)
  • Housing / Material

    housing of die cast aluminium
    safety glass, clear
    ceiling plate of die cast aluminium

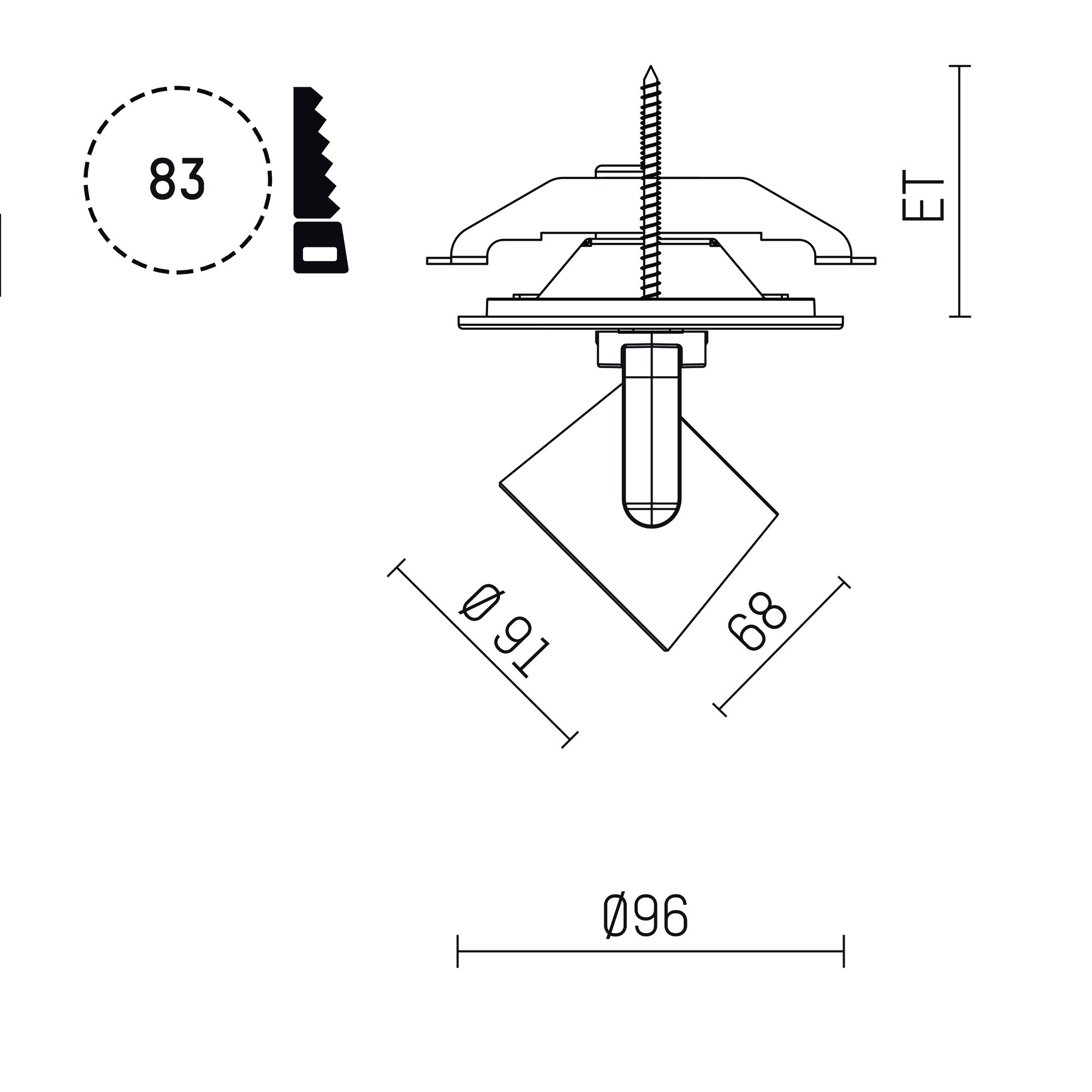

    Dimensions and weights
    Weight: 1.3 kg Rotation range: rotatable 360° Swivel range: 95° tiltable (can be fixed)
    Protection classes / test marks
    protection rating: IP20
    protection class I
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: 35 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE

Technik

Optional accessoires

visor
suitable for attachment of accessories
for spotlights gin.a, gin.o and lo.nely size 2

104748

connection tube with cross louver
suitable for attachment of accessories
for spotlights gin.a, gin.o and lo.nely size 2

103439

antiglare flaps
for spotlights gin.a, gin.o and lo.nely size 2

103438

tube screen
suitable for attachment of accessories
for spotlights gin.a, gin.o and lo.nely size 2

103442

connection ring
suitable for attachment of accessories
for spotlights gin.a, gin.o and lo.nely size 2

103445

Addons for optional accessoires

honeycomb louver
for spotlights gin.a, gin.o and lo.nely size 2

103448

prismatic glass
for spotlights gin.a, gin.o and lo.nely size 2

104915

soft.shape lens
for spotlights gin.a, gin.o and lo.nely size 2

104228

soft.spot lens
for spotlights gin.a, gin.o and lo.nely size 2

103461

sculpture lens
for spotlights gin.a, gin.o and lo.nely size 2

103460
