led.modular
11962614916D
linear luminaire led.modular IP65
LED 5400 lm, 4000 K, 40 W
Downloads
Technische Daten
-
Product description
linear luminaire led.modular IP65 with mounting bracket
for installation on wall or ceiling
for optimal illumination of vertical facadesArticle number
11962614916DColour
silver -
Lighting technology - LDT
with LED 5400 lm
colour temperature: 4000 K
colour rendering index (manually): CRI >80
L80 / B10 (50.000h)
SDCM < 2
net luminous flux: 4050 lm
total load: 40 W
luminous efficacy: 101.3 lm/W , oval flood
11° x 61°
Control gear / connection
with built in LED power unit, electronic (DALI), 220-240 V, 0/50/60 Hz
dimmable
dimming range: 100-10 % -
Housing / Material
housing of extruded aluminium profile
safety glass, clear
bracket of stainless steel
with integrated lens system for homogenous wall illuminationDimensions and weights

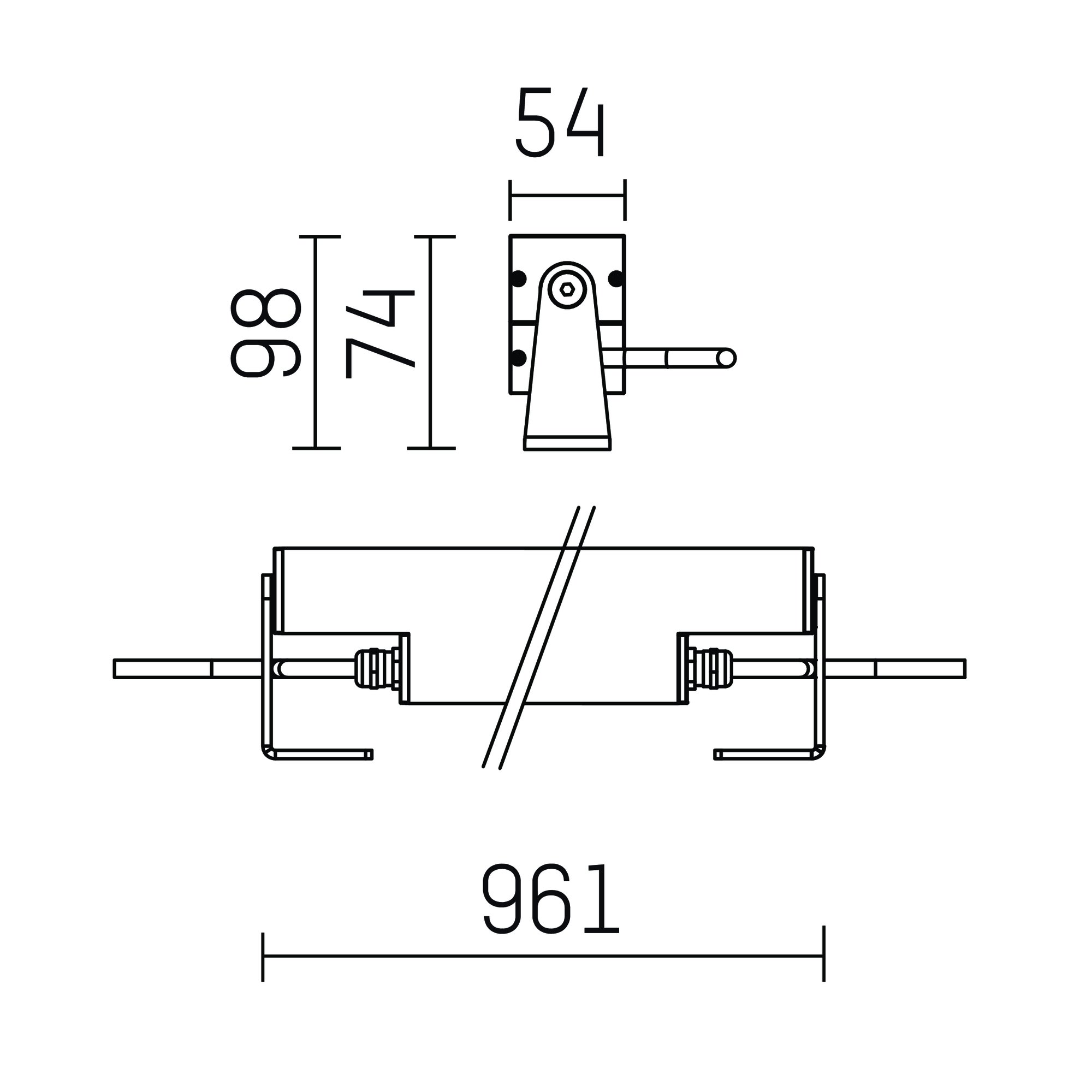

Weight: 6.2 kg length: 961 mm width: 54 mm height: 100 mm Rotation range: Swivel range:Protection classes / test marks
protection rating: IP65
protection class I
5 years Hoffmeister warranty
Made in Germany Maximum ambient temperature: 50 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE
