gin.o

11212514721-PA

lens wall floodlight gin.o 1
LED perfect.white 1050 lm, 4000 K, 10 W

Downloads
Technische Daten
Technik
Zubehör

Downloads

Technische Daten

  • Product description
    lens wall floodlight gin.o 1 passive thermo management with recessed mounting plate
    for recessed installation into wall or ceiling
    Article number
    11212514721-PA
    Colour
    black
  • Lighting technology - LDT
    with LED 1050 lm
    colour temperature: 4000 K
    colour rendering index (manually): CRI >80
    L90 / B10 (50.000h)
    SDCM < 2
    net luminous flux: 710 lm
    total load: 10 W
    luminous efficacy: 71.0 lm/W     asymmetrical light distribution
    Control gear / connection
    with external LED power unit, electronic, 220-240 V, 50/60 Hz
    Dimming with external dimmers possible (trailing-edge and leading-edge)

    dimming range: 100-0.1 %
  • Housing / Material

    housing of die cast aluminium
    ceiling plate of die cast aluminium

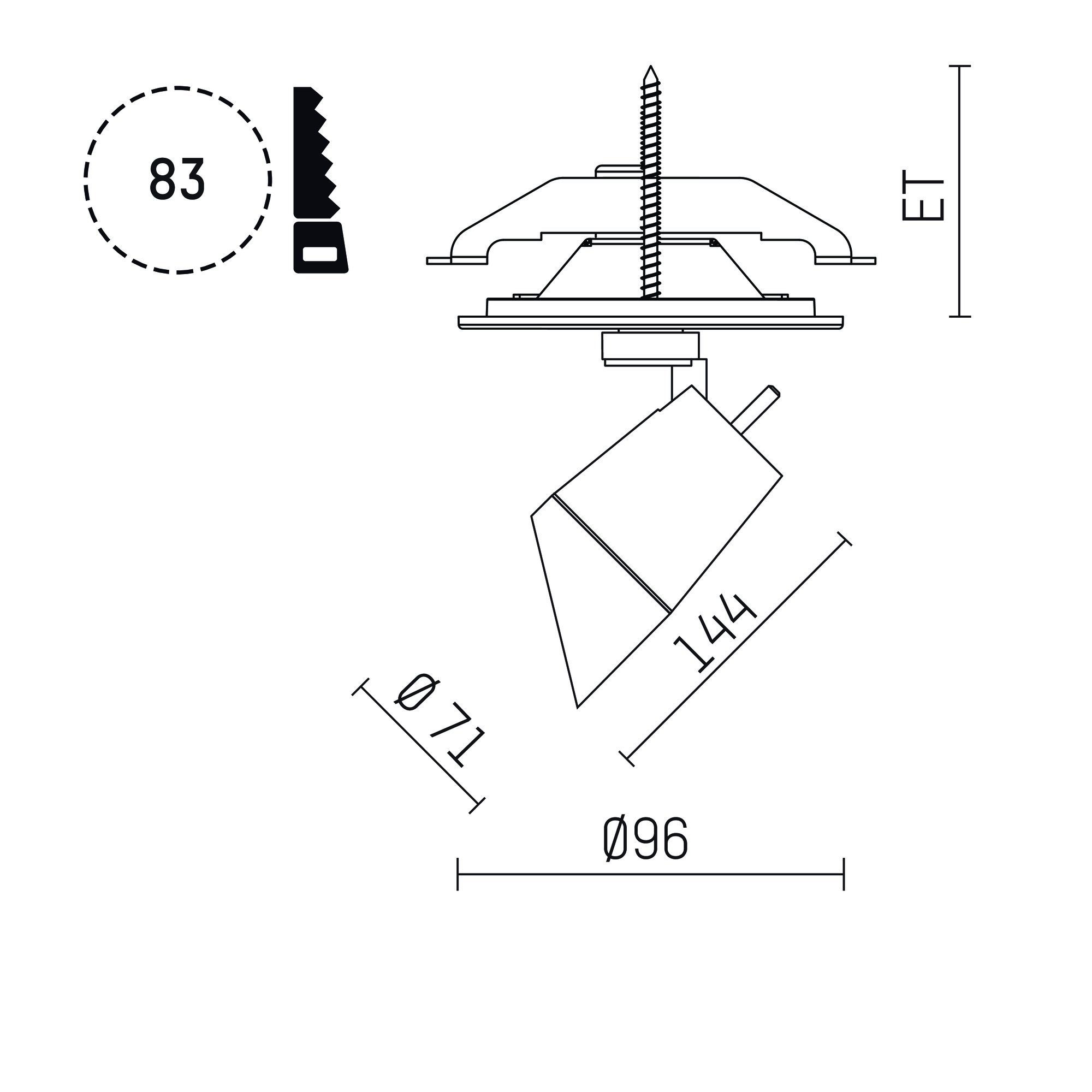

    Dimensions and weights
    Weight: 1.2 kg Rotation range: rotatable 360° Swivel range: 90° tiltable
    Protection classes / test marks
    protection rating: IP20
    protection class I
    5 years Hoffmeister warranty
    Made in Germany     Maximum ambient temperature: 35 ° C Mark of conformity: manufactured according to DIN VDE 0711 / EN 60598|CE
